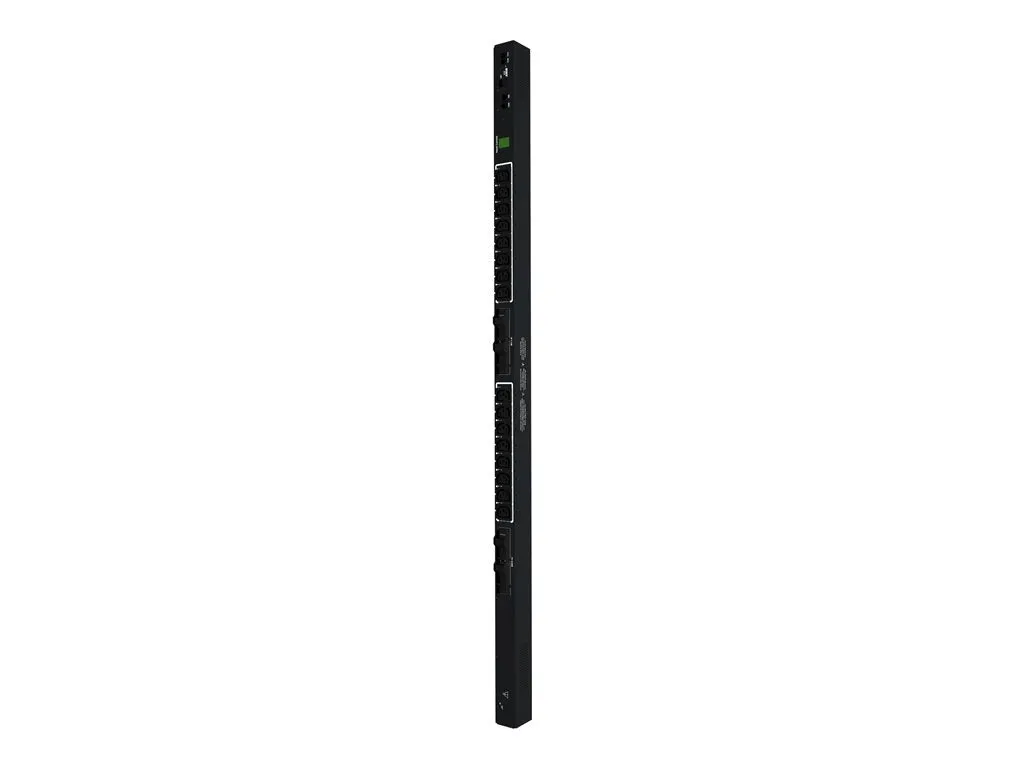

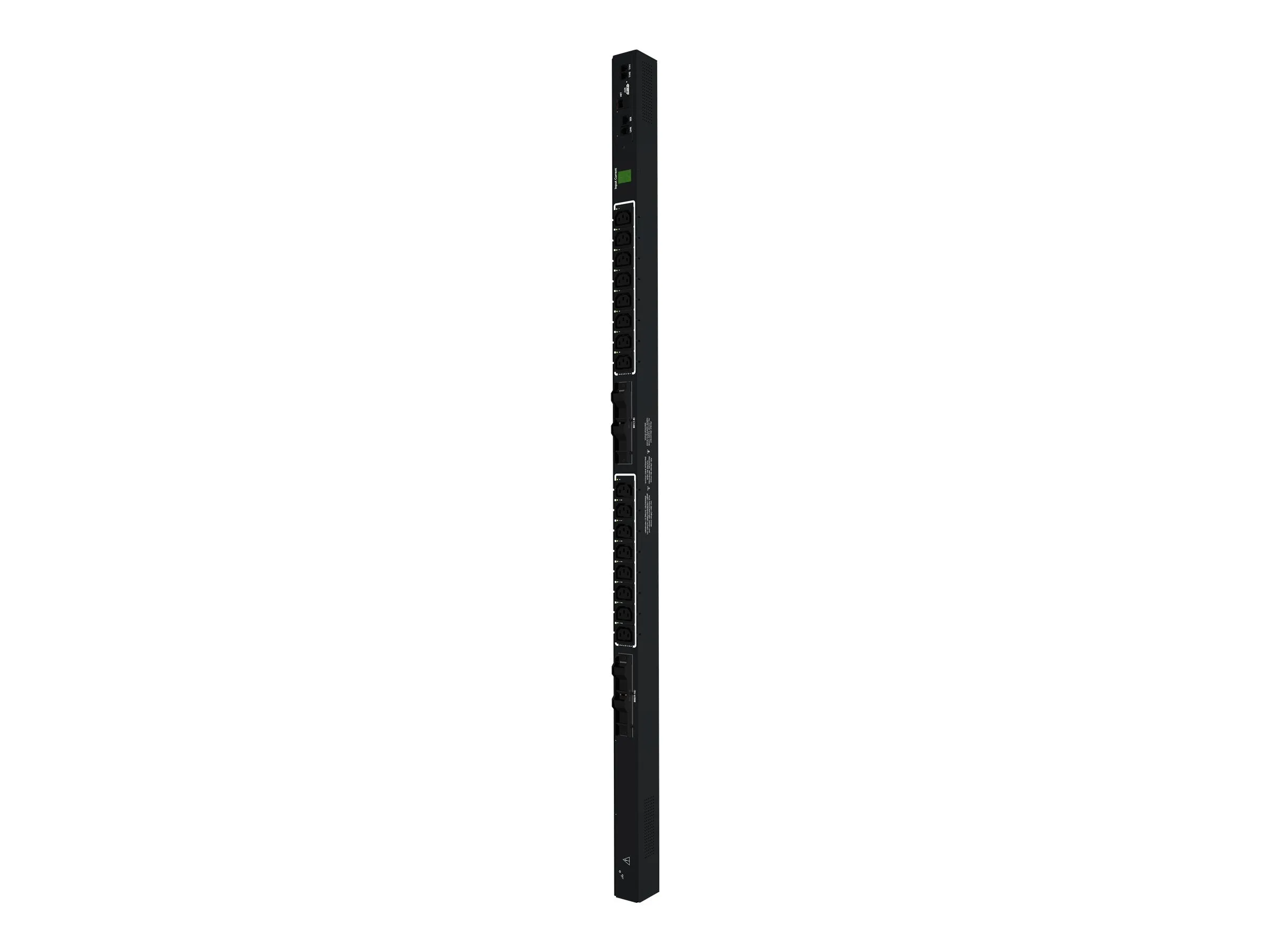

Name: Server Technology PRO1 Switched PDU C1W16VS-0AFA17AC - Master - power distribution unit (rack-mountable) - AC 208 V - 3.3 kW
SKU: 296508

Product Details ＋

Server Technology PRO1 Switched PDU C1W16VS-0AFA17AC - Master - power distribution unit (rack-mountable) - AC 208 V - 3.3 kW - 1-phase - Ethernet 10/100, RS-232 - input: IEC 60320 C20 - output connectors: 16 (16 x IEC 60320 C13)

Hot-swap network card
Network access is ensured when power is lost to the Master unit with backup power provided by the primary link unit.
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
Temperature/humidity monitoring
Master and Link units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high- density cabinets. "Switched".
Per-inlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
Branch circuit protection
This PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
Outlet control
On Switched rack PDUs, cycle power to individual outlets or groups of outlets to reboot servers. Or power off unused receptacles.
High retention locking outlets
Receptacles have high retention and are compatible with P-Lock type power cords.
Flexible mounting
Includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).

The Server Technology PRO1 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master"PDU can be connected to PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
