Product Details
＋
Note: Free shipping on all orders. Bike Front and Rear Derailleurs are shipped from United States & China warehouse, delivery time is 7-35 working days.
Applicable Bike Model
VIVI bike front derailleurs are suitable for the following ebikes:
| DERAILLEUR | WHEEL SIZE | MODEL | BIKES |
| Front Derailleur A | 27.5" | H7 | |
| Front Derailleur B | 26" | M026SH | |
| Front Derailleur C | 26" | M026TGB | |
| Front Derailleur D | 26" | H6 | |
| Front Derailleur E | 26" | 26LGB |
Product Details
| Color | Black |

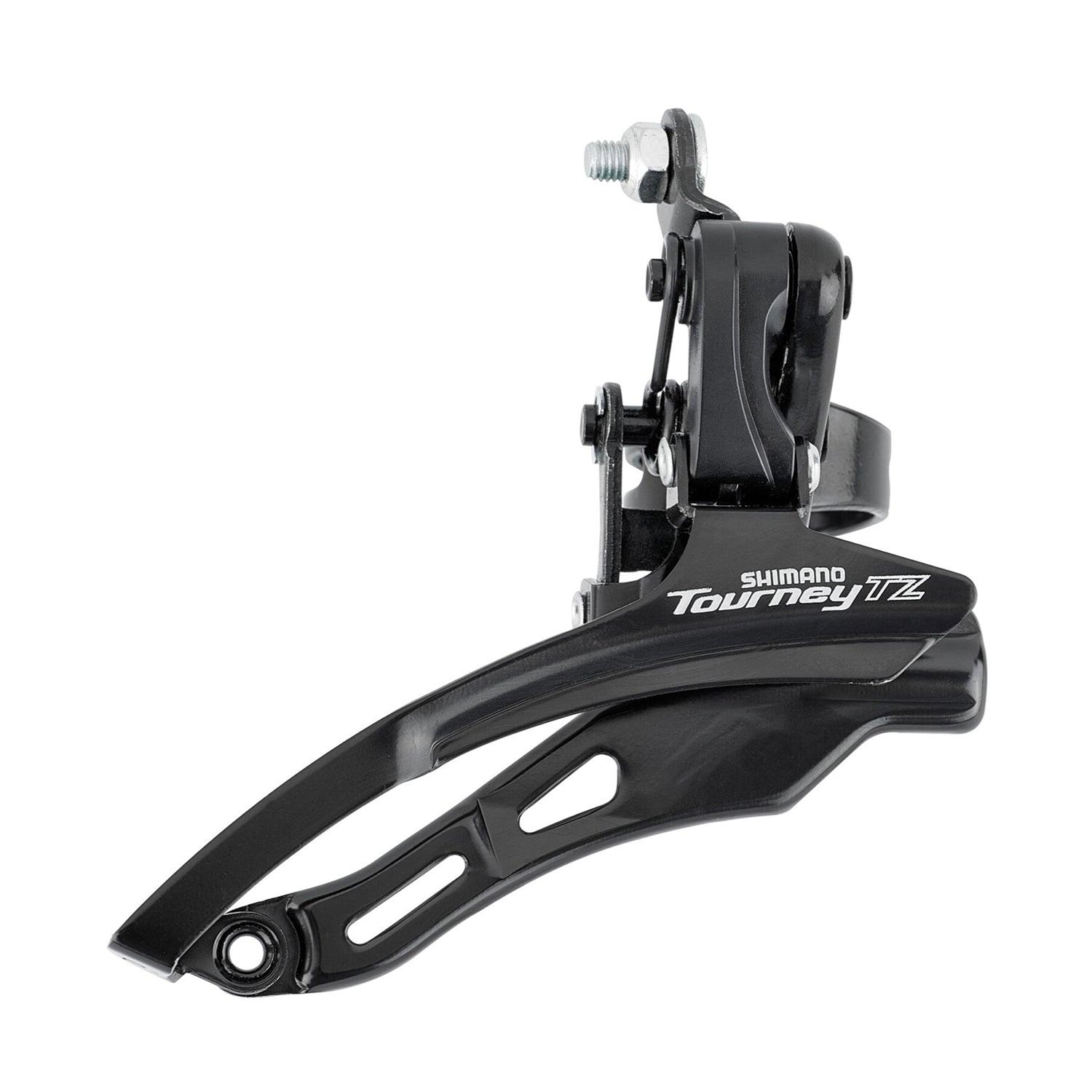

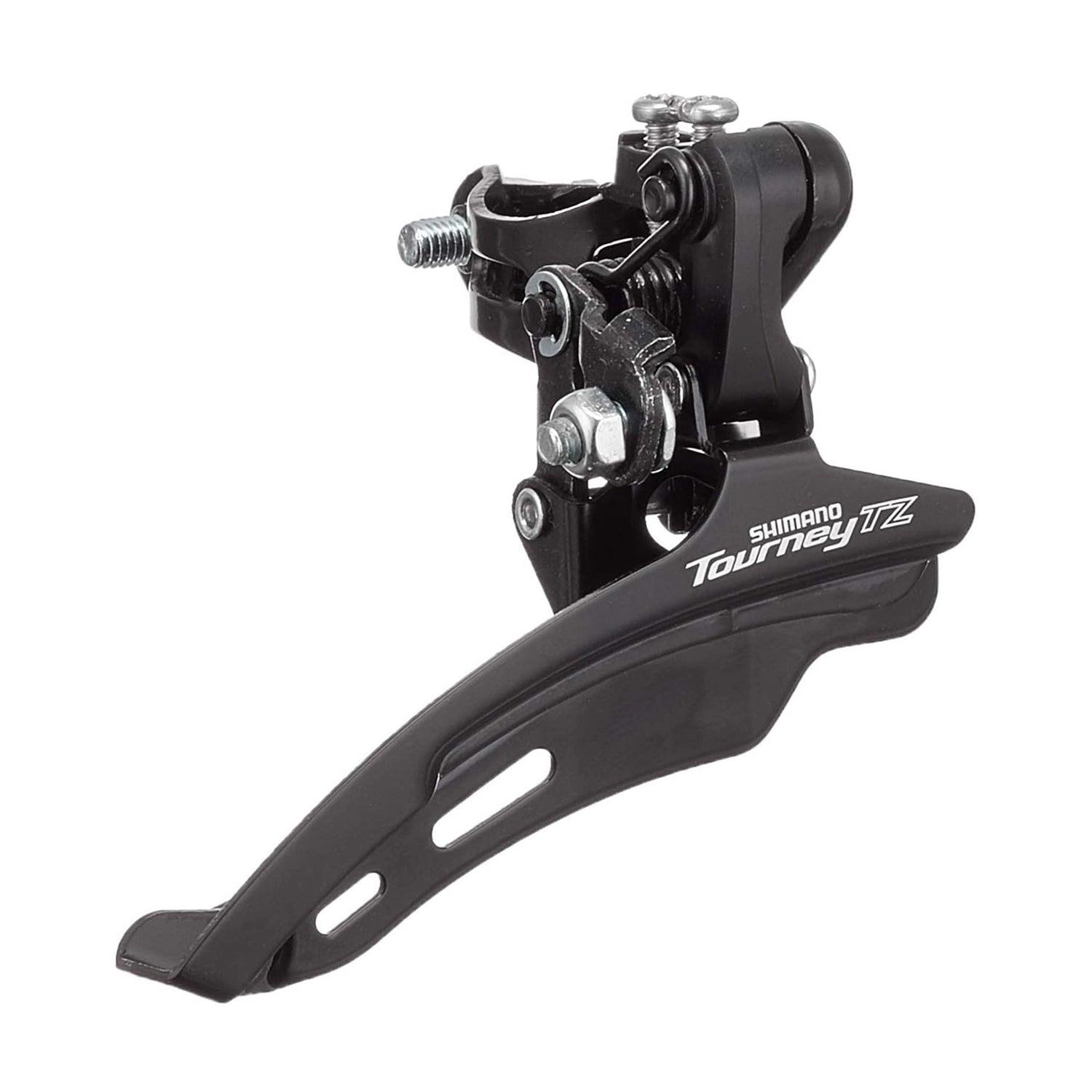

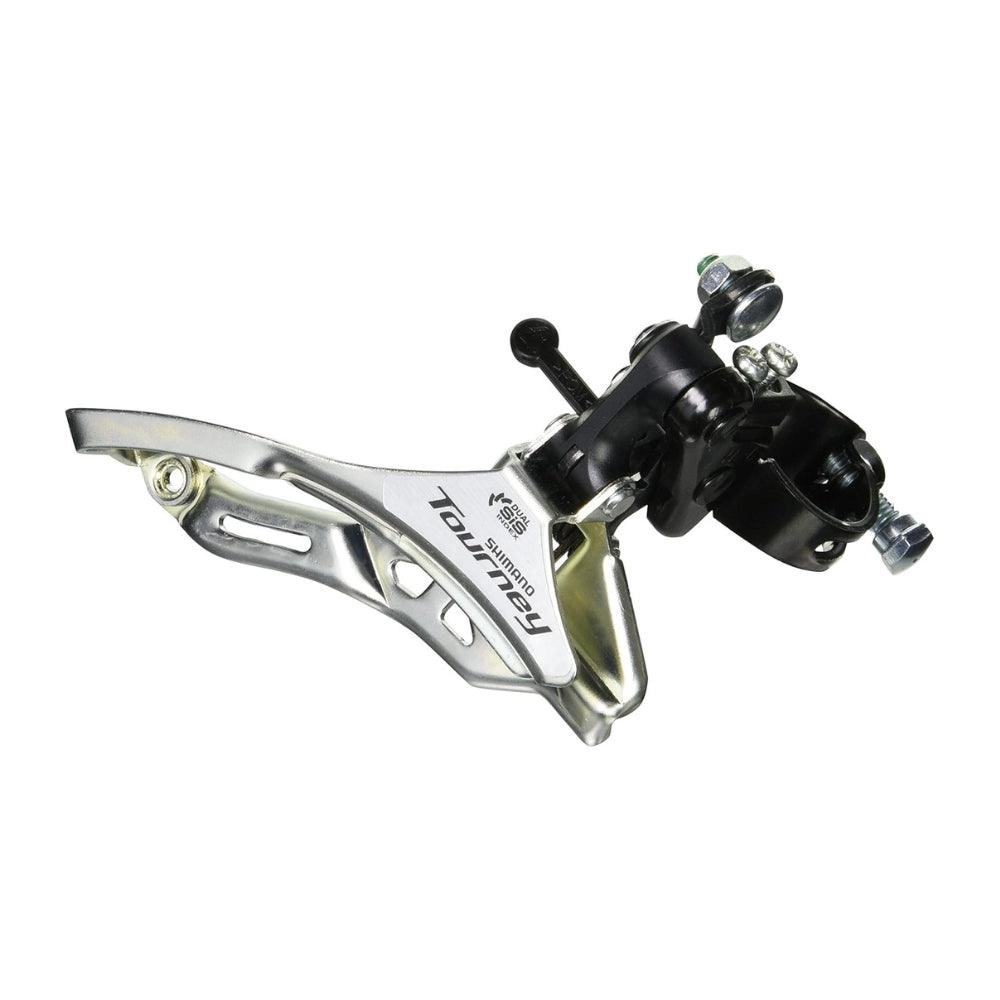

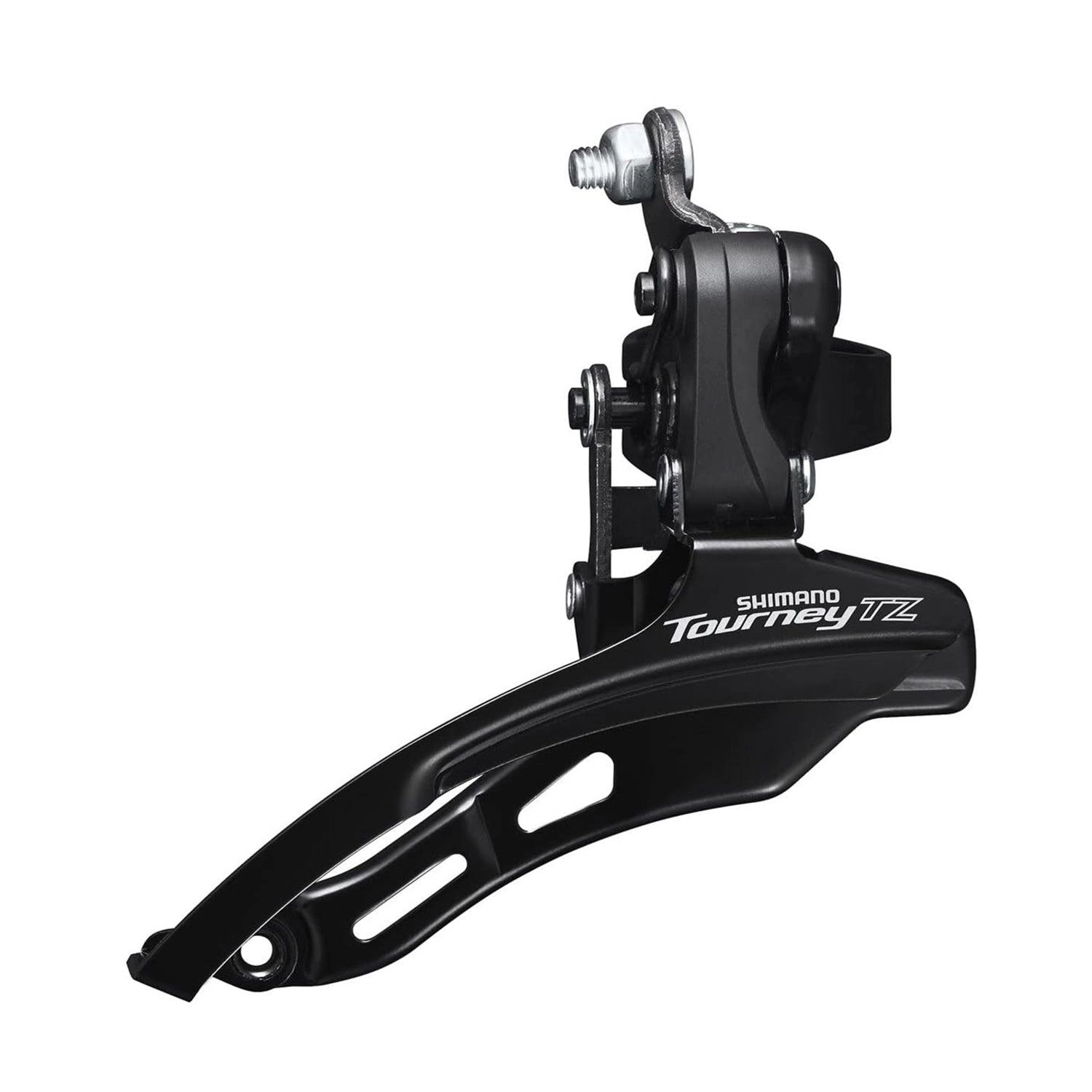

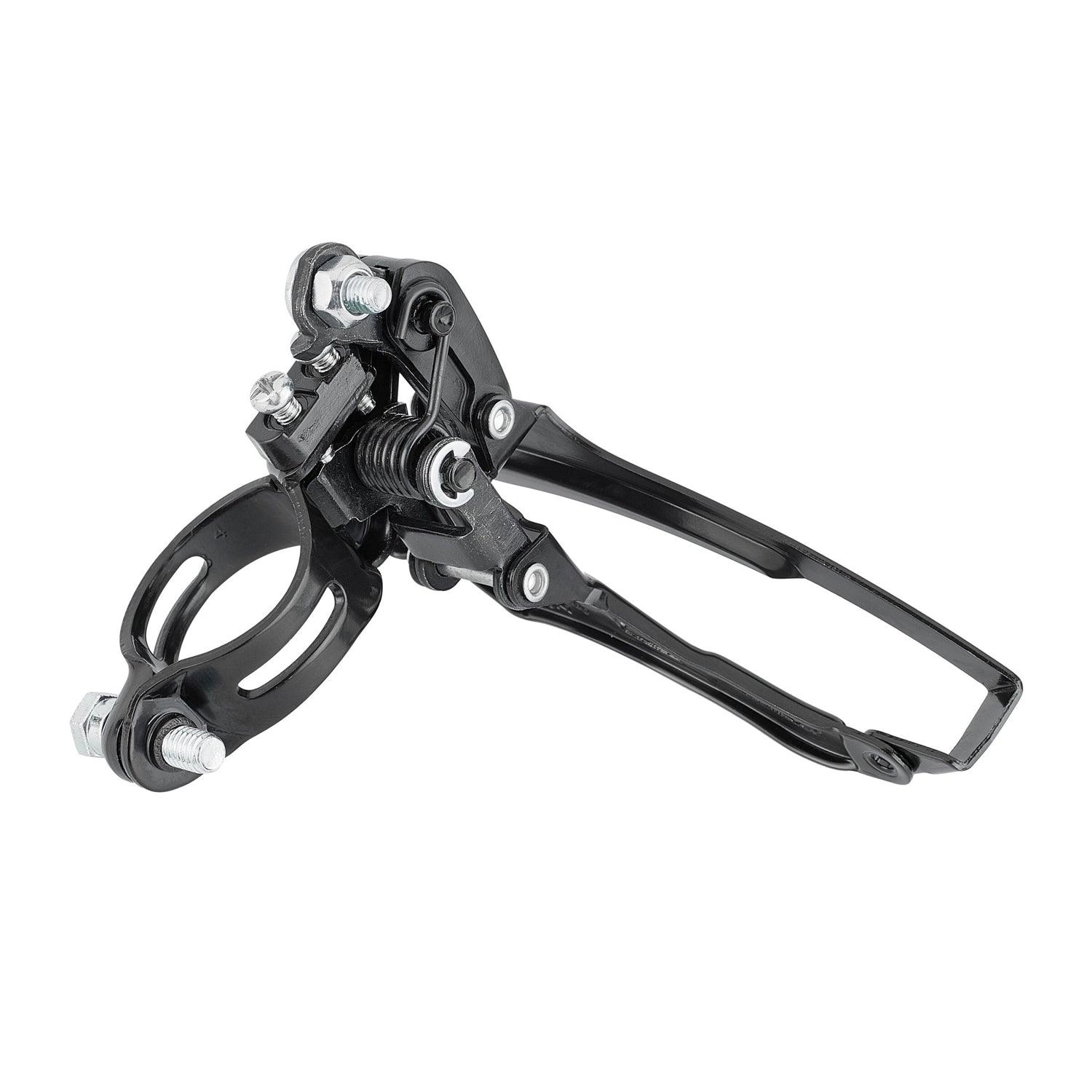

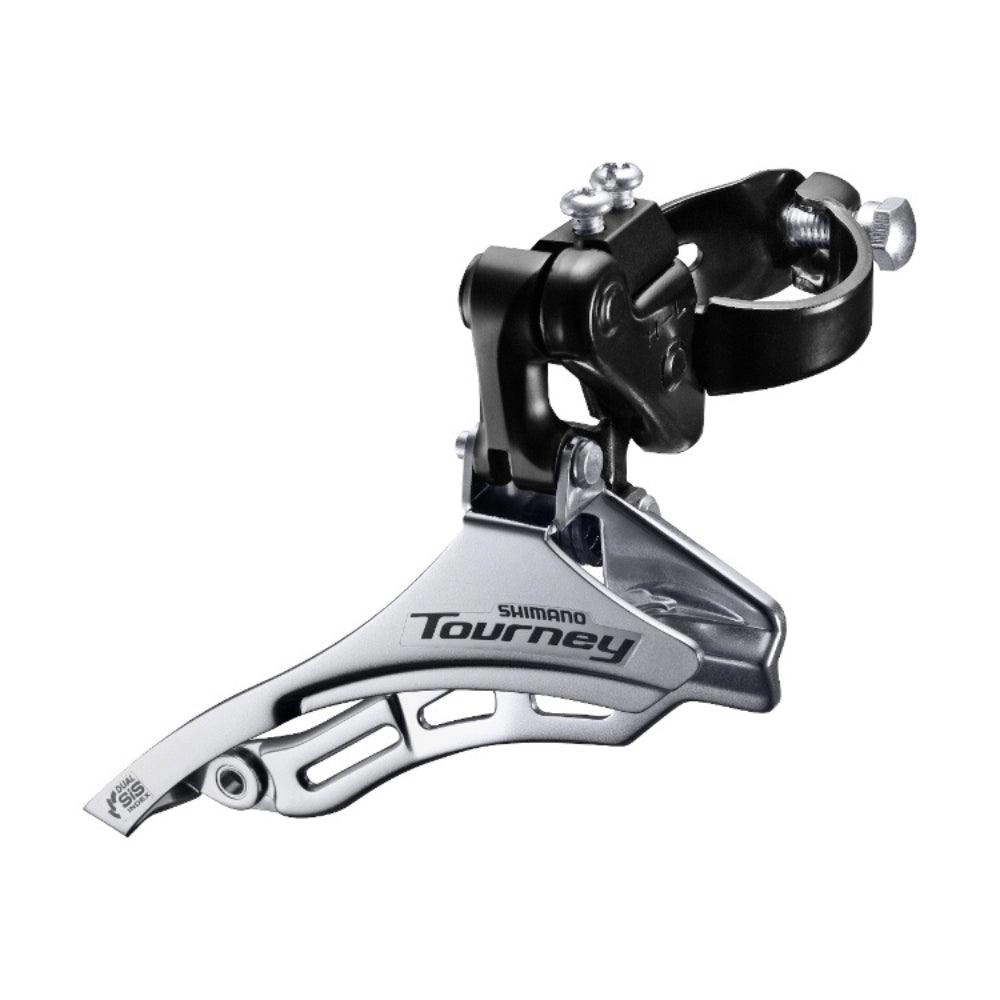

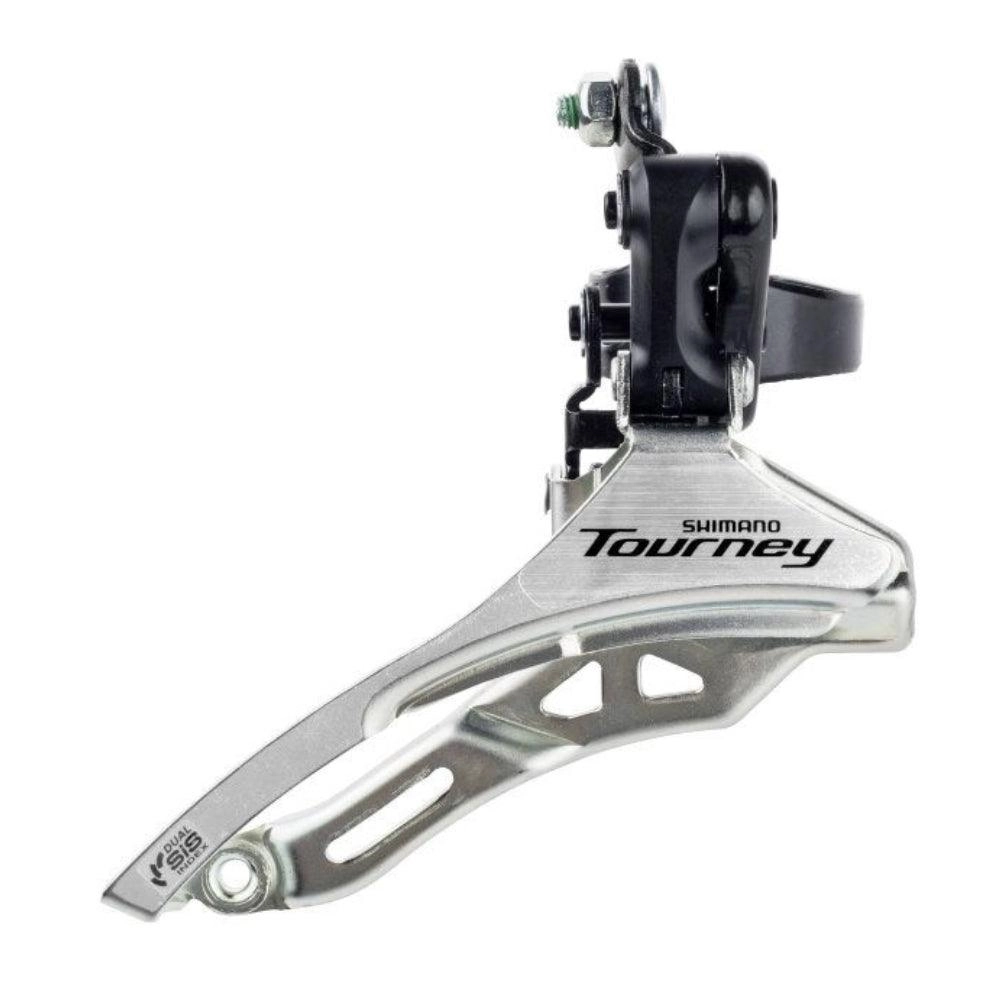

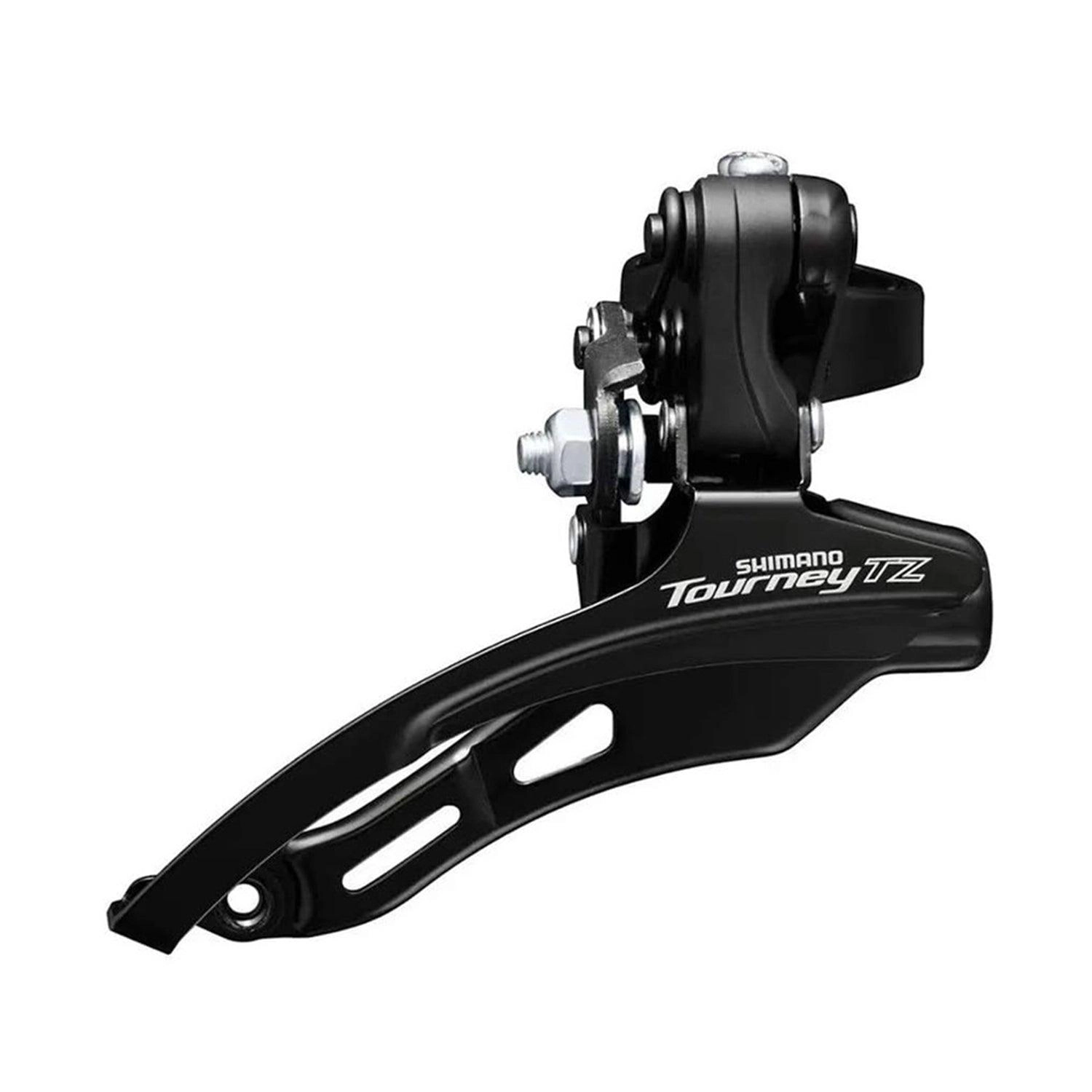

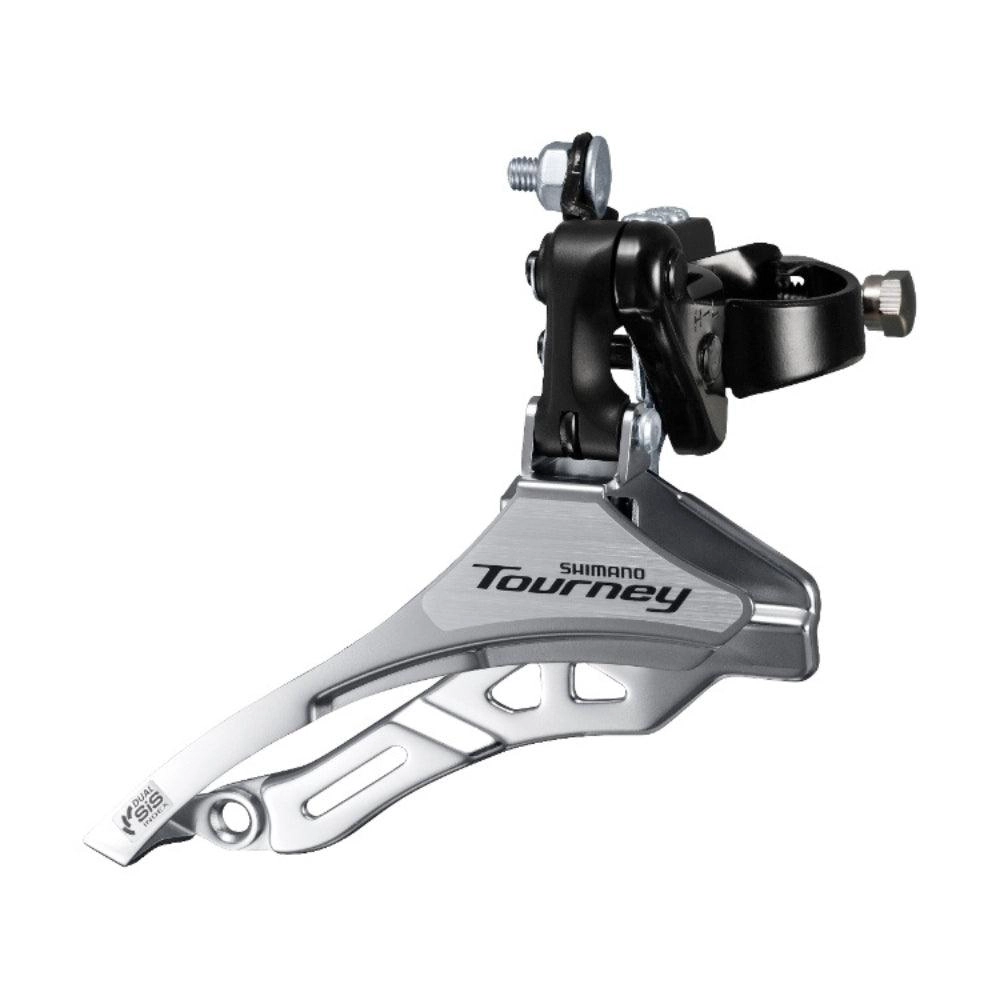

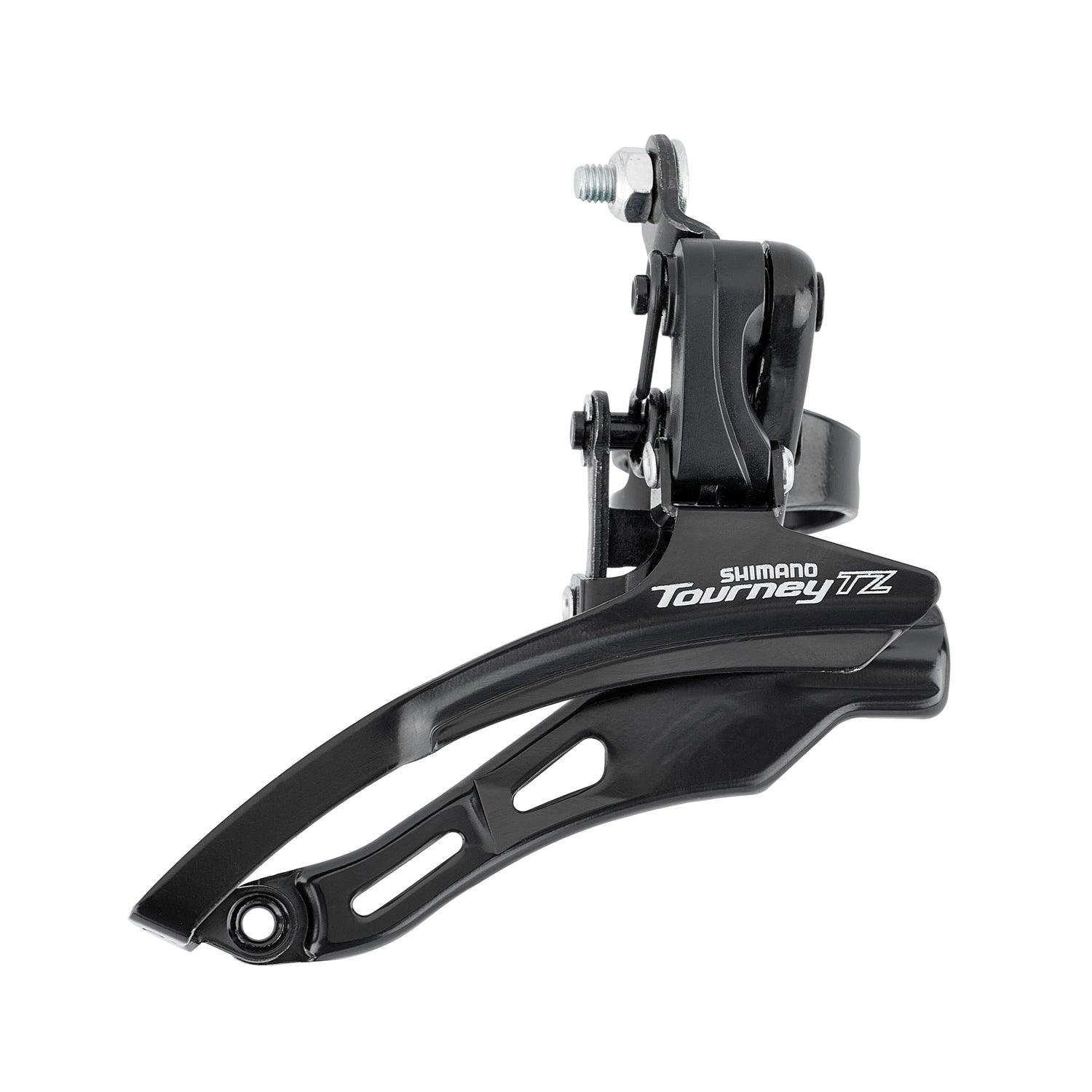

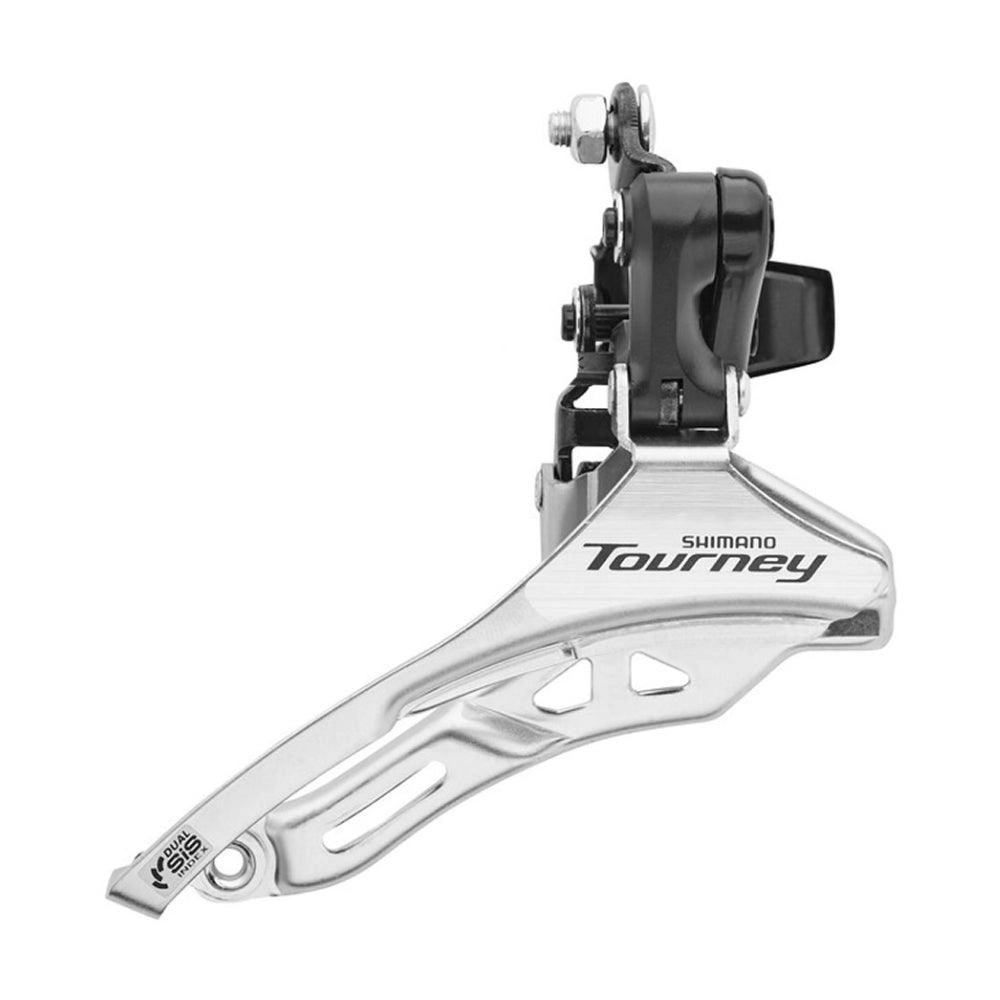

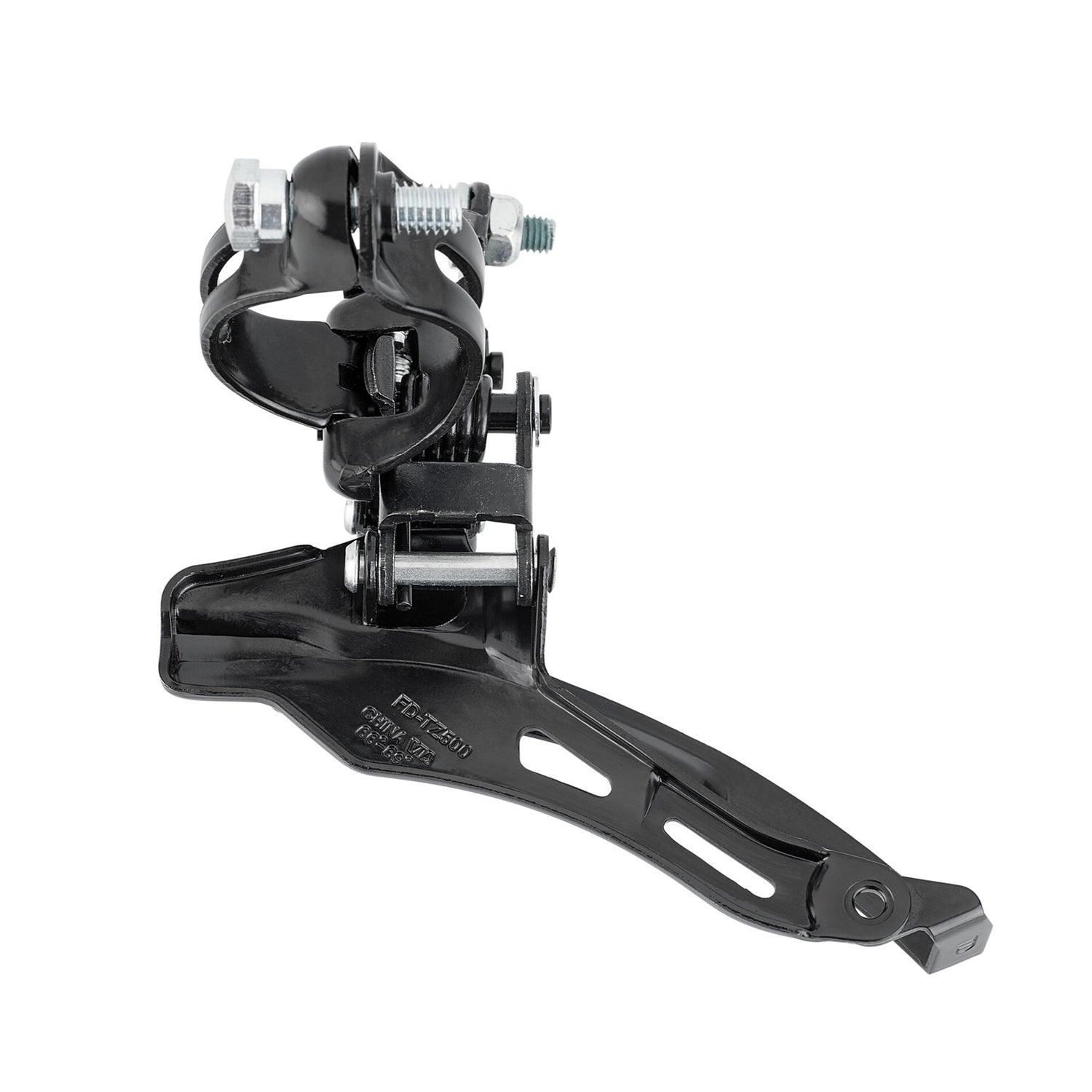

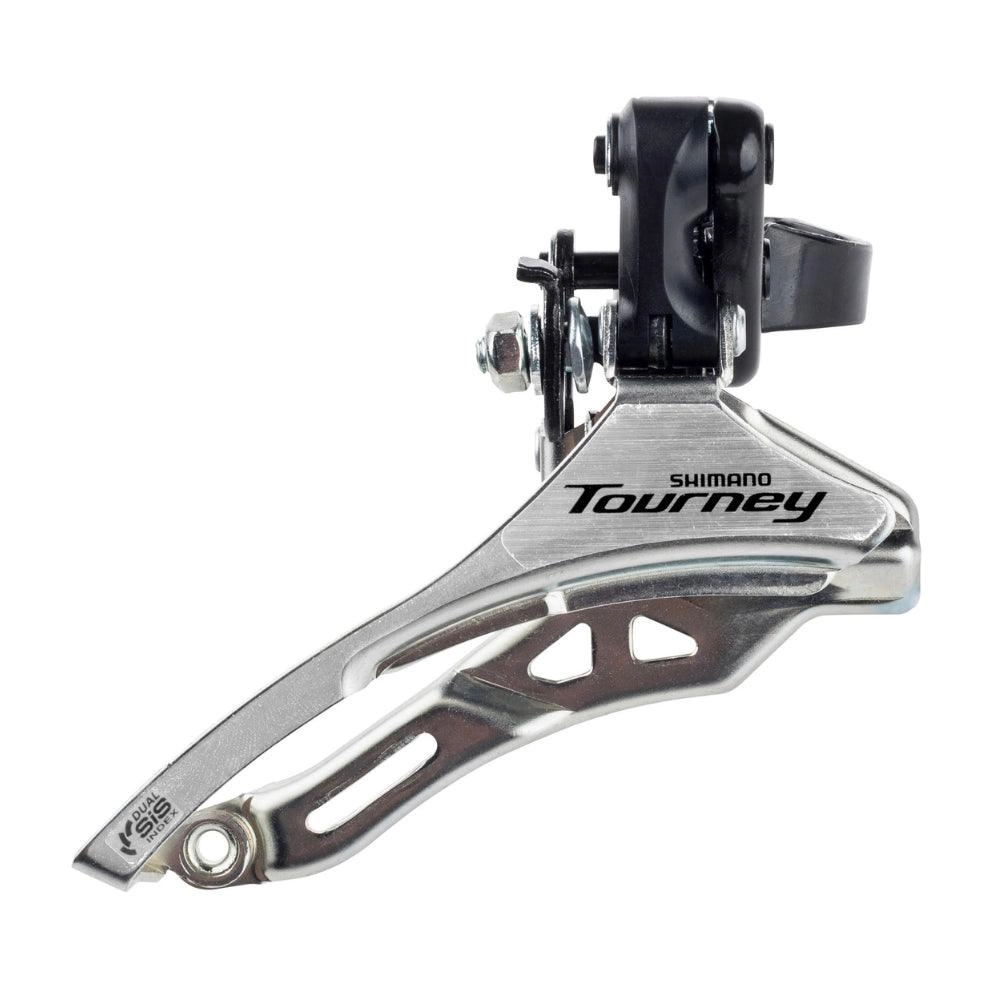

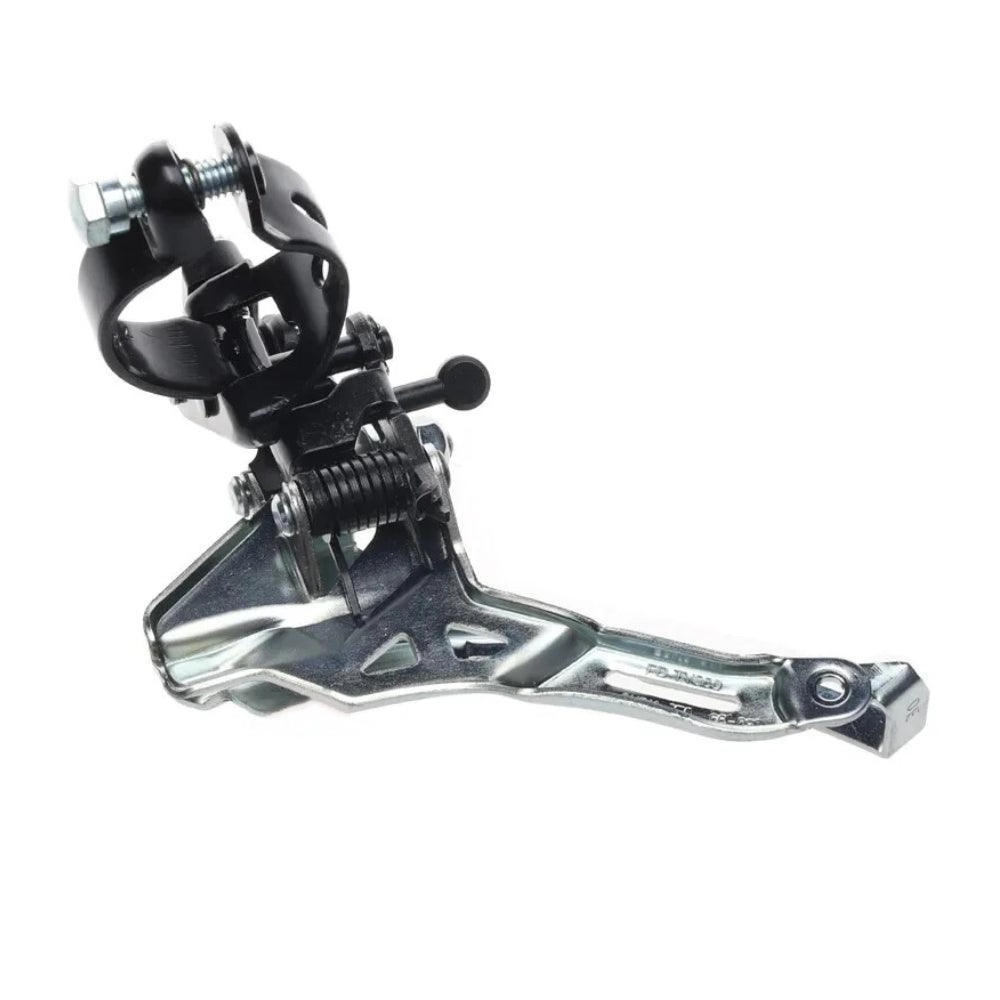

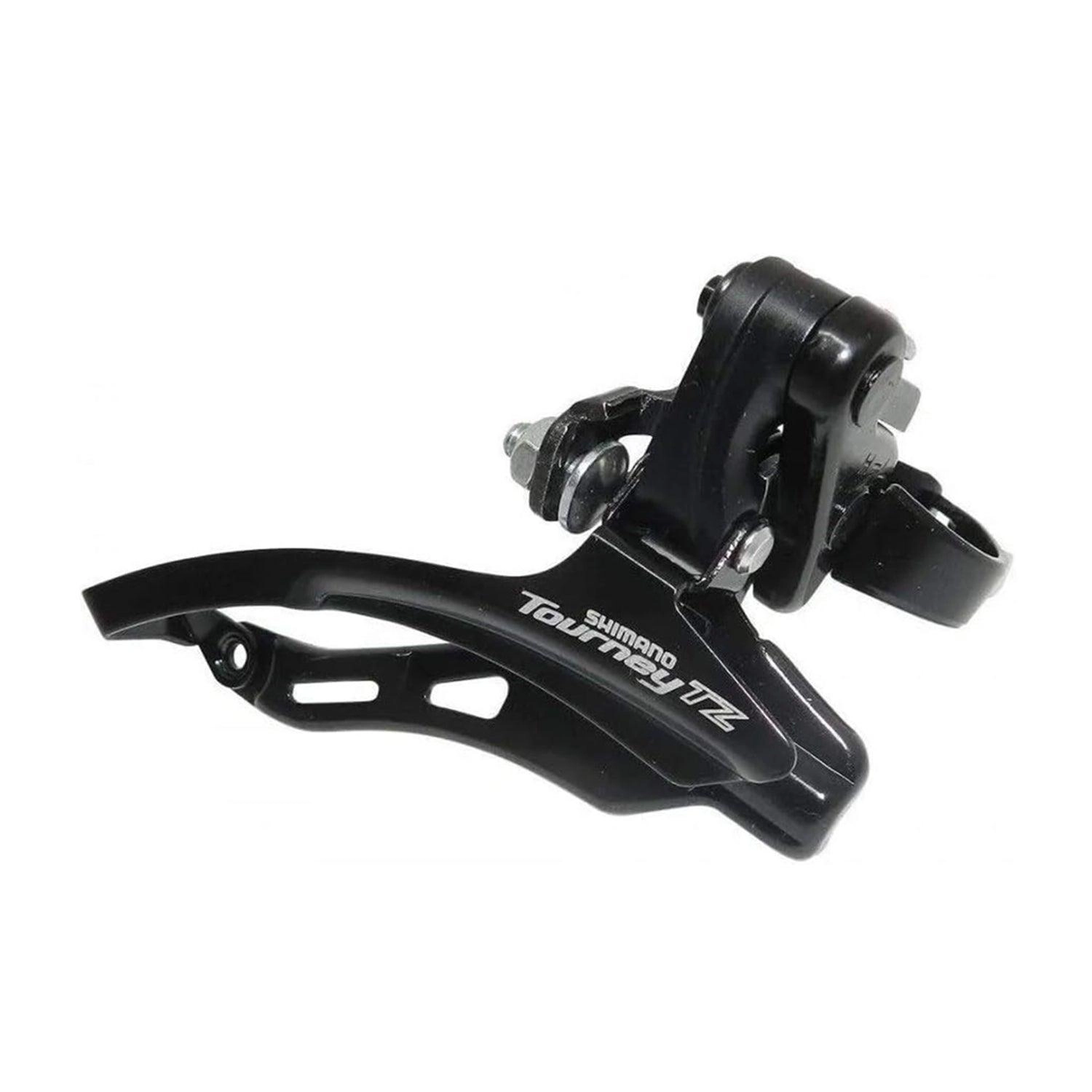

| Model | FD-TY300-DS6 / FD-TZ500-DS6 |
| Brand | Shimano |
| Material | Aluminum / Alloy Steel / Resin |
| Type | Bike Front Derailleurs |
| Mounting Type | Clamp-On Mount |
| Part number | EFDTY300DSDS6 / FDTZ500DSTS6 |
| Front speeds | 3 (friction) |
| Rear speeds | 7/6 |
| Compatible chain | HG 8/7/6-speed |
| Action | Down swing |
| Installation diameter | Clamp band 28.6mm-31.8mm |
| Cable route type | Down-pull exclusive |
| Chain line | 47.5mm |
| Chainstay angle | 66-69 deg. |
| Top gear teeth | 42T |
| Total capacity | 18T |
| Applicable Tooth difference | 8T |
| Weight | 0.5kg/1.1lbs |
| Packing size | 20*14*10.5cm/7.8*5.5*4.1inches |
| Quantity | 1Pc |
Features
- Made of high strength aluminum alloy material, strong and durable, lightweight design.
- Front derailleur is compatible with 3x7/6 speed drivetrains and 42-34-22T chainrings.
- Double SIS positioning, 47.5-50mm chain center line compatible.
- With wide chain design, high variable speed response.
- Low-friction shifting Compatible with 7/6-speed drivetrains.
- Down swing (conventional) design is light action and compatible.
- For use on MTB style bikes with 66 to 69 degree seat tube to chain stay angle.
- Developed to work with 42 tooth outer chaining.
- Pre-assembled inner cable fixing nut, easy assembly.
- Smooth, light and reliable shifting performance.
Packing Content
- 1 x Original Bike Front Derailleur
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you.
